2.8mm Pogo Pin Connector Dip Type Gold Plated Brass Pogo Pin

Product Categories
Dongguan Honshi Electronics Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

2.8mm Pogo Pin Connector Dip Type Gold Plated Brass Pogo Pin

Place of Origin : CHINA

Brand Name : HONSHI

Model Number : A281250XXDVX01

MOQ : 100 pieces

Price : $0.05/pieces 100-999 pieces

Certification : ISO9001/ISO14001/CE/ROHS/REACH

Payment Terms : T/T,Paypal

Supply Ability : 990000pcs

Delivery Time : 15~25Day

Packaging Details : PE Bag,Tube,Reel Packaging

Specification : Spring Pogo Pin Dip Type

Type : DIP Type

Pin Length : 12.0mm or can be custom

Material : Brass(C3604,C6801)

Spring : SUS304

Plated : Gold palted(3U") can customized

Salt Spray Test : 72H

Applications : PCB,power ,charging equipment

Sample : Support samples with 1weeks

Contact Now

Dip Type Pogo Pin For 2.8mm Pogo Pin Connectors

Specific material electrical parameters
Electrical Performance: Mechanical Performance:
Rated Current: 3.0AMP Spring force: 120g±20g or Customized
Contact Resistance: 50mΩ Max Work Stroke: 1.5mm or Customized
Rated Voltage: DC 12V Maximum Working stroke: 1.9mm or Customized
Operation Temperature: -40°c to +105°c Mechanical Life 100,000 cycles
Resistance To Solder Heat: 260℃±5℃ 20s±2s
All materials comply with"ROHS" environmental protection standards
Customized POGO PIN Warmly welcome W/LOW MOQ.


2.8mm Pogo Pin Connector Dip Type Gold Plated Brass Pogo Pin

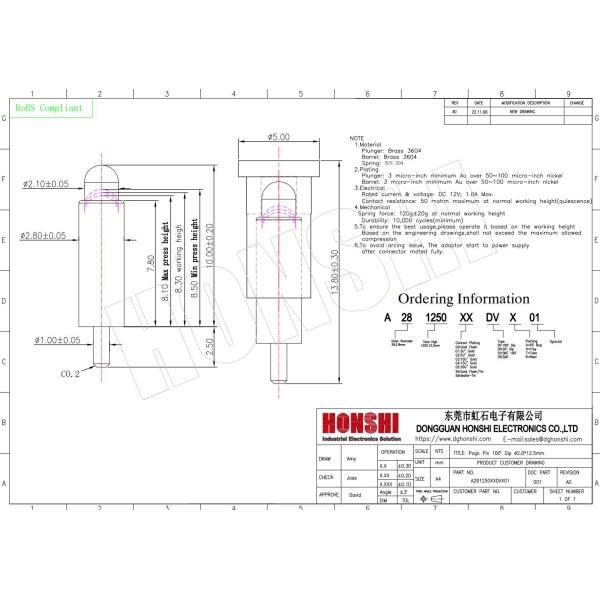

2.8mm Pogo Pin Connector Dip Type Gold Plated Brass Pogo PinDrawing:A281250XXDVX01.pdf

Pogo Pin Connector

Pogo Pin is a precision connector used in mobile phones and other electronic products.

It is widely used in various electronic products and plays a role in signal transmission connection.

Its shape structure is divided into: flat bottom type, plug plate type, bending type, double needle shaft, thread type, welding wire type,

side hole type, etc.

The internal structure is divided into: back drilling type, slicing slope, slicing slope with round ball, through hole type, tail plug type, double head type, etc.

Plating selection: regular gold plating, nickel plating, etc.

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free designsupporting samples, the quality is safe and reliable, the price is competitive.

2.8mm Pogo Pin Connector Dip Type Gold Plated Brass Pogo Pin
